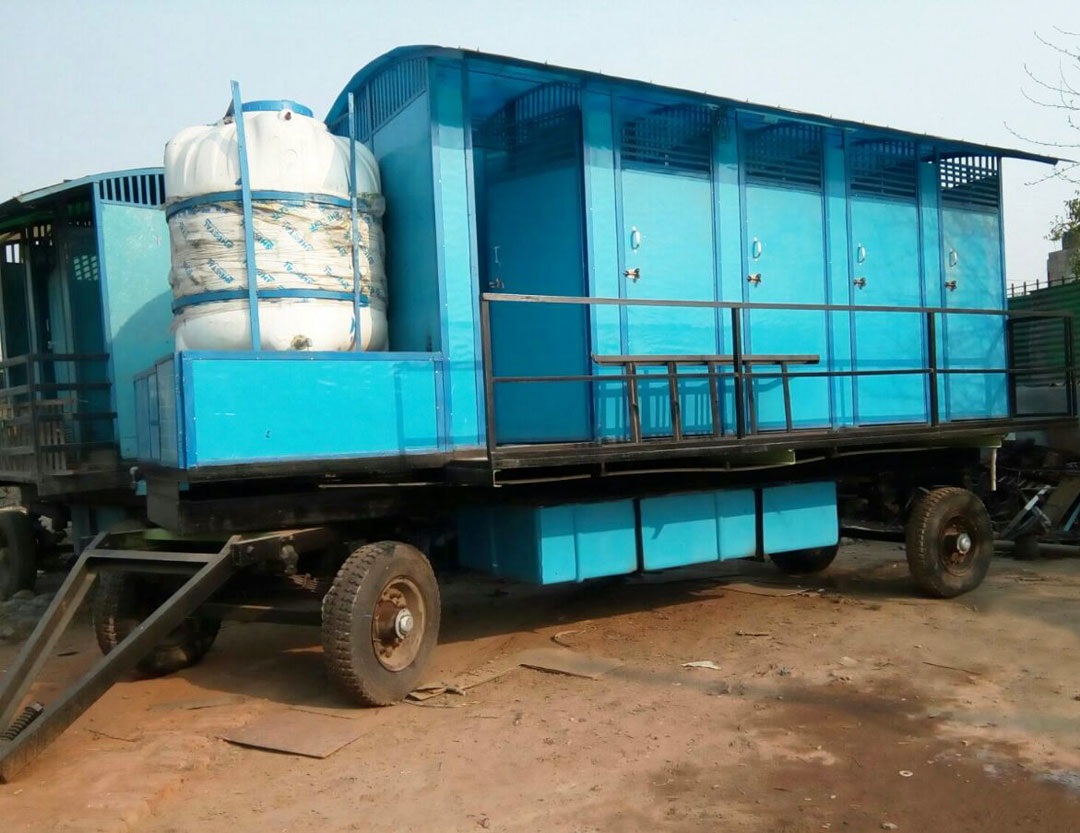

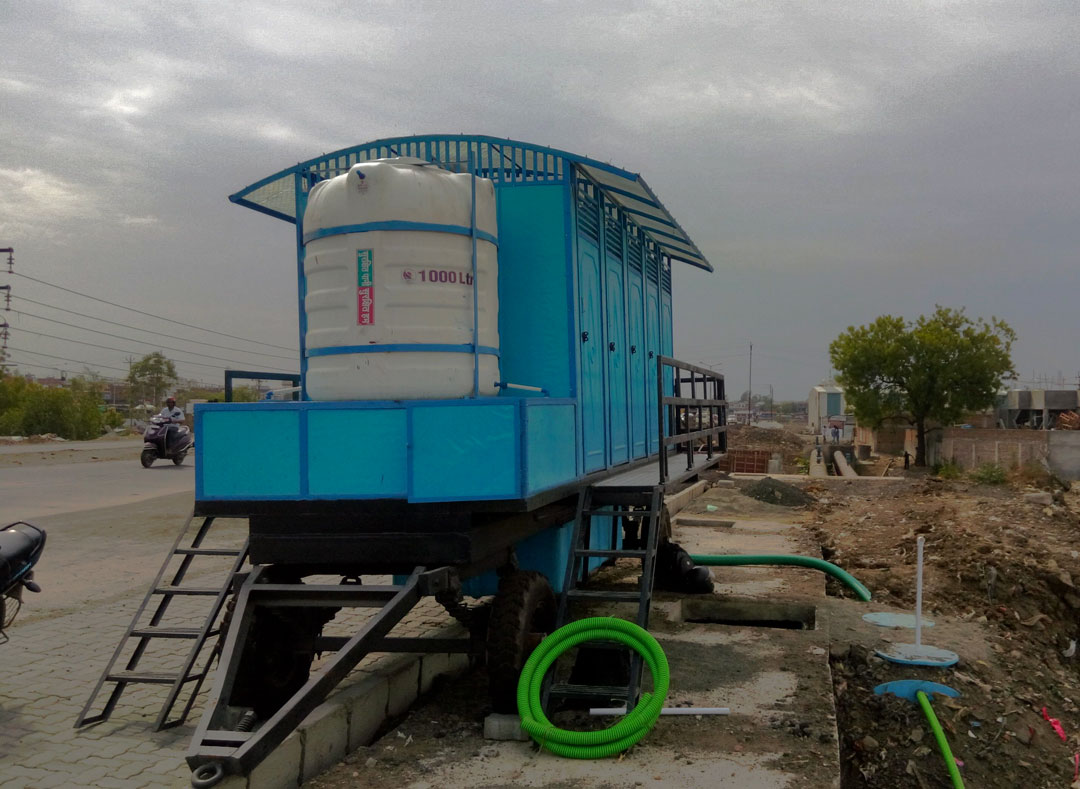

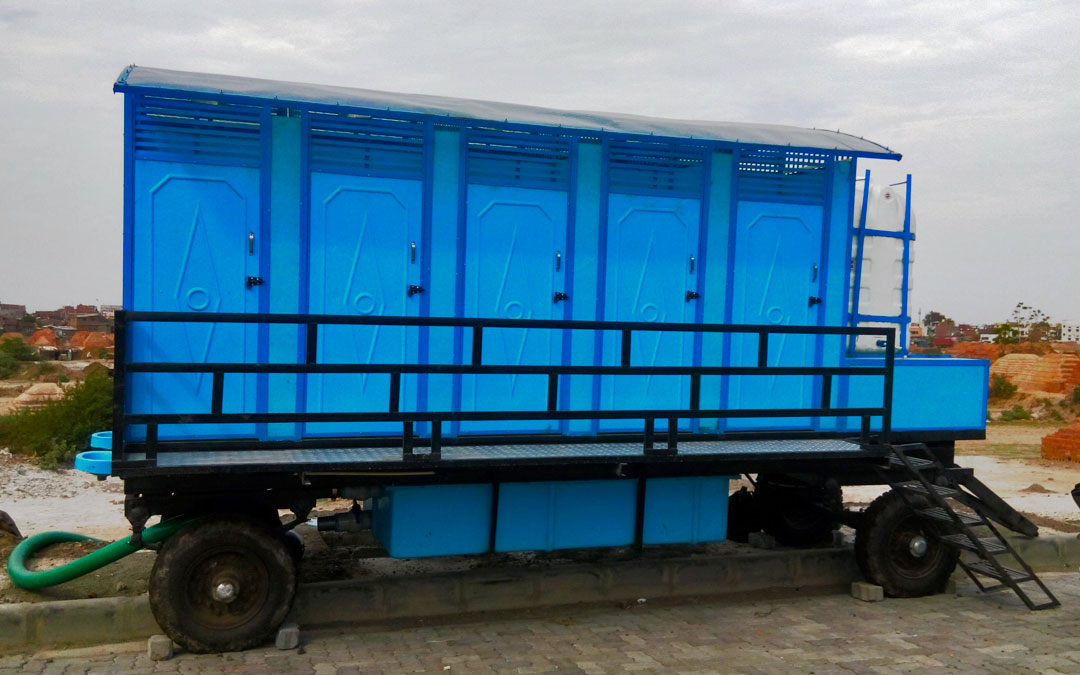

10 SEATER MOBILE TOILET UNIT WITH NGAD BIO-DIGESTER TECHNOLOGY
| Size | 5.68m length x 2.74m width x 3.15m height from ground level |
| Base Frame | shall be fabricated from M.S. Angle of size of size 150mm X 75 mm, 75 mm X 40 mm and 100 mm X 50 mm. |
| Cabin Structure | shall be fabricated by using M.S Angle of size 40X40X6mm |
| Cabin Panel | shall be covered with G.R.P Coated asbestos sheet approx 9mm thickness |
| Roof Structure | Shall be Fabricated by using M.S Angle of size 40X40X6mm and M.S.Tee of size 40 X 40 X 5 mm having round shape and projection and covered with transparent fibre glass sheet. |
| Folding Type Platform | Shall be fabricated by using M.S. angle of size 40X40X6mm and M.S.flat of size 25X5mm with aluminum checker plate. Side railing shall be provided by using special size of hinges pin & bush etc.M.S. Box pipe 2inchX1inch and m.s.angle of size 40X40X5mm |
| Flooring | Floor panel integrated with squatting pan, footrest and skirting will be FRP modeled. |
| Washbasin | 2 No. S.S/FRP Washbasin, two looking mirror, two towel rod provided on rear side |
| Bio-Digester: | NGAD bio digester of FRP modeled approx 2800 & 1700 Itrs. capacity with adequate bio-cord assembly , bio-culture and EKOGEA Bio additives with disposal arrangement. |
| Phyto Bed : | One Phytobed of size : (L X W X H) 93 inch X 45 inch x 18 inch with suitable biomedia, bioculture and Phyto plants. |
| Water Tank:: | 1 No. Watertank of capacity 500 ltrs. |
| Electric Fitting: | one point in each toilet cabin with controlling of M.C.B. on each side ladies/gents. |
| G.I. Fittings : | Every toilet cabin with water connection of 15mm dia G.I. pipe and other fitting. |
| Connection: | connection of each toilet with 110 mm dia PVC pipe of ISI mark with P- trap and other fitting and one connection of waste gap pipe. |
| Trailer Specification : | Chassis Four Wheeled chassis with Heavy duty turn Table made, Pay Load 6 Tones. Tyro No. : 2 front & 2 rear. |
