Go Green MBR / MBBR – CSSS

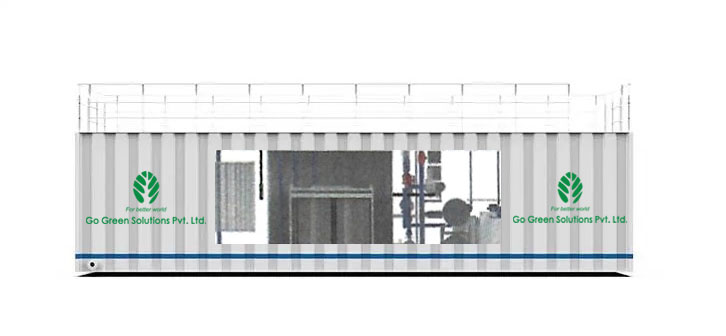

Go Green MBR / MBBR – CSSS Sewage Treatment Plant, with a daily processing capacity of 100-1000 tons per unit, can be combined up to 10000 tons. The box is Made of carbon steel and stainless-steel materials, acid and corrosion resistant and is disinfected with UV, which has stronger penetration and can kill 99.9% of bacteria. The core membrane group is reinforced with a hollow fiber membrane lining. Widely used in sewage treatment projects such as small towns, new rural areas, sewage treatment plants, rivers, hotels, service areas, airports, etc.
Product Features
Highly Integrated: Multiple treatment units are compactly integrated within a standard container, resulting in a compact structure.
Easy Mobility: Designed with the standard container form and transport function, it can be quickly relocated to different sites and reused.
Rapid Deployment: Pre-fabricated in the factory, it only requires simple on-site connection, significantly shortening the construction and installation cycle for a “plug-and-play” solution.
High Adaptability: Its modular design allows for easy capacity expansion, and it can be customized with specific processes to suit various decentralized scenarios like rural areas, scenic spots, and construction sites.
Smart Operation: It is typically equipped with an automated control system that supports remote monitoring and unattended operation, reducing the dependency on specialized maintenance.
Cost-Effective: It eliminates the need for extensive civil works, resulting in lower initial investment and a faster construction cycle, enabling quick commissioning and return on investment.
Option
- Solar power system
- Sludge dryer system
- 50% Sludge reduce system
- Grease Trap
- Online analyse

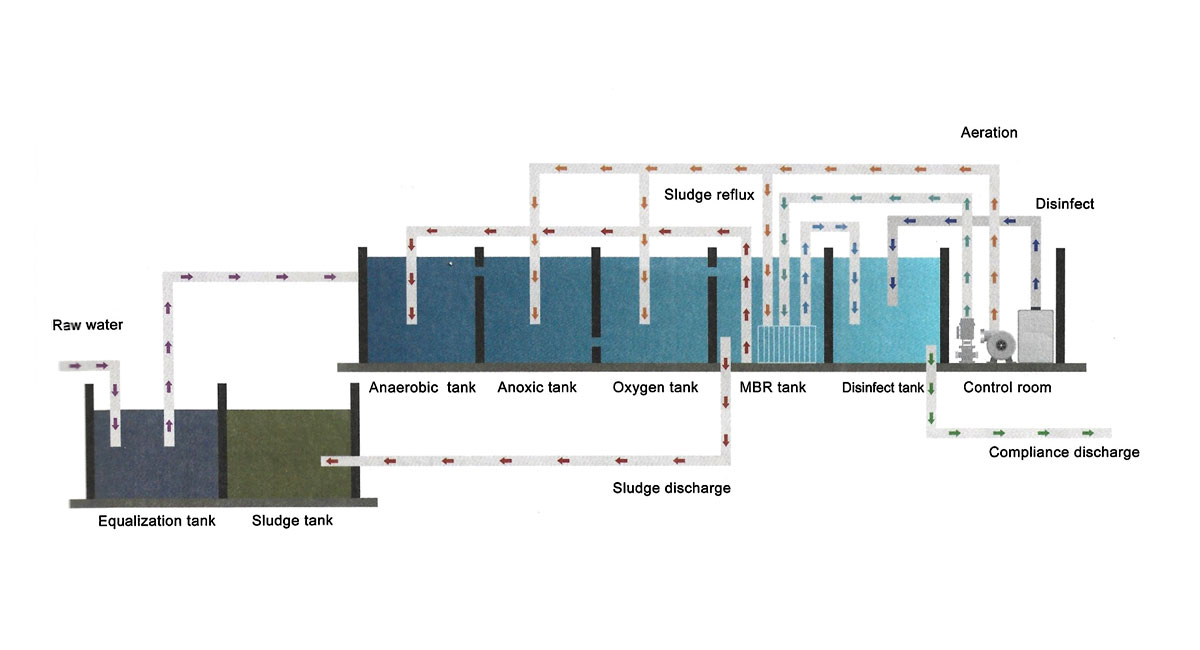

Technical Process
Product Parameters
| BOD (mg/l) | Ammonia (mg/l) | SS (mg/l) |
Faecal coliform (CFU/100ml) |
|
|---|---|---|---|---|
| Effluent | 10 | 5 | 5 | 50 |
| Capacity | 50 m2/d | 75 m2/d | 100 m2/d | 200 m2/d | 300 m2/d | 500 m2/d | 600 m2/d |
|---|---|---|---|---|---|---|---|
| Power | 6 kw | 6.5 kw | 7 kw | 10 kw | 13 kw | 16 kw | 17 kw |
| Daily power consumption | 70 kw.h | 95 kw.h | 100 kw.h | 180 kw.h | 200 kw.h | 275 kw.h | 290 kw.h |
The above data is for reference only. Parameters and options require mutual confirmation between both parties, and other models can be customized. Pictures are for illustrative purpose only. The final product is subject to the actual object. The company reserves the right of final explanation.
